| Product introduction:

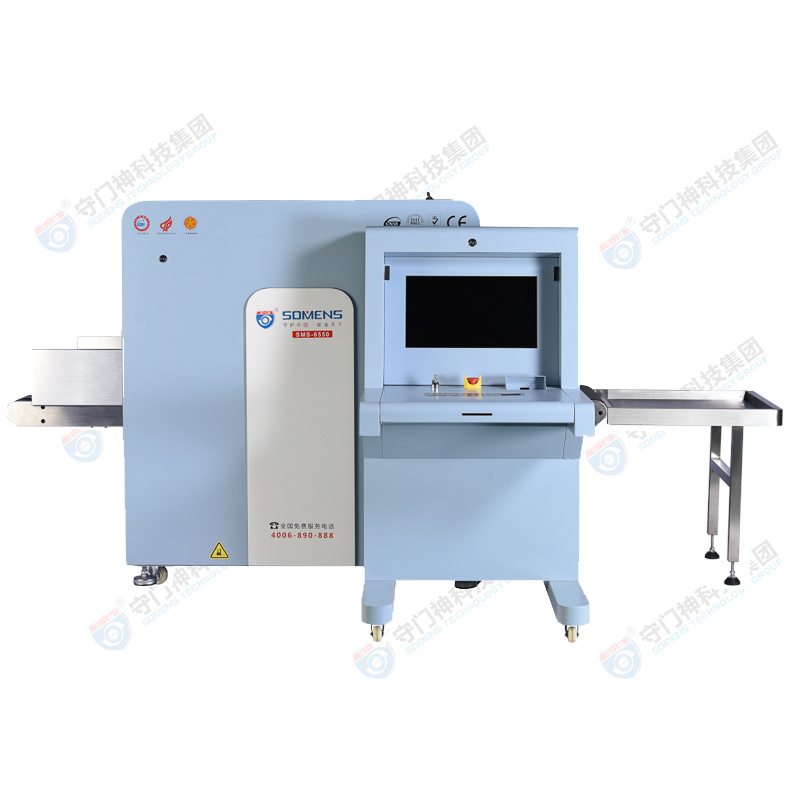

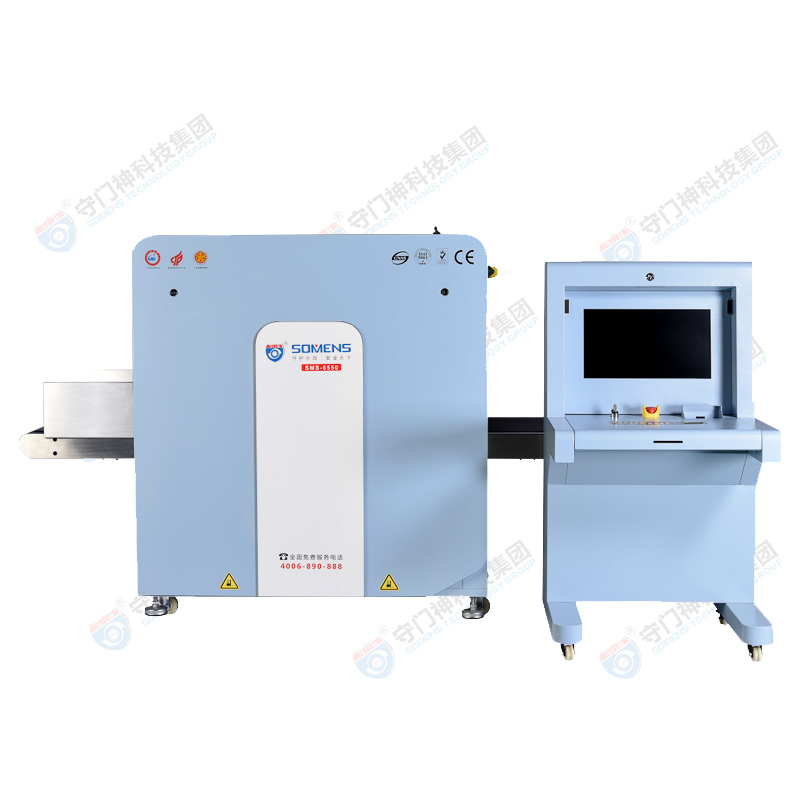

SMS-6550 medium-channel X-ray machine has passed the certification of the Ministry of Public Security, leading the performance parameters, can penetrate 40mm steel plate, line resolution reaches 0.0787mm single solid core copper wire, with one-button shutdown, automatic induction, energy saving and environmental protection Features.
| Application range:
Party and government organs, public security armed police, courts, procuratorates, prisons, labor camps, detention centers, drug rehabilitation centers, airports, subways, museums, embassies, customs stations, port terminals, tourist attractions, sports and cultural sites, conference centers, exhibition centers, large Important departments of activities, sports events, scientific research institutions, postal securities, logistics express, border defense forces, financial power, hotel schools, factory enterprises and other public places. It is mainly used to detect prohibited items and flammable and explosive items hidden in small and medium-sized goods, parcels, mail, bags, suitcases, satchels, backpacks, etc., such as controlled knives, guns, detonators, fireworks, alcohol, and gasoline. Sulfuric acid, etc.
|
SOMENS-6550 Technical Parameters
|
Channel size
|
650 (wide) ╳ 500 (height) mm
|
Conveyor speed
|
0.22m/s
|
Conveyor maximum load
|
180Kg
|
Film security
|
ISO1600 film security
|
Resolution
|
Single solid copper wire with diameter of 0.0787mm
|
Spatial resolution
|
Horizontal: 1.0 mm diameter Vertical: 1.0 mm diameter
|
Penetration
|
40mm steel plate
|
Tube voltage
|
100--160 KV (adjustable)
|
Tube current
|
0.4~1.2mA (adjustable)
|
Ray divergence angle
|
80°
|
Leakage dose
|
＜0.12μGy/h
|
Power loss
|
1.5KW(maximum)
|
Operating Voltage
|
220VAC(±10%) 50±3Hz
|
Cooling cycle
|
Sealed oil cooling / 100%
|
X-ray sensor
|
L-shaped photodiode array detector (multi-energy), 12-bit depth
|
Beam direction
|
Bottom type
|
monitor
|
High resolution 17 inch LCD
|
One-button shutdown
|
Shut down the key only, the device automatically shuts down safely, reducing equipment failure
|
Energy saving and environmental protection design
|
The object automatic sensing function, automatic baggage operation, no baggage in a static state; the lead curtain is coated with a protective film to avoid lead pollution to the human body and prolong the service life of the device.
|
Image resolution and gray image
|
Resolution: 1024 * 768; gray image: 4096
|
Image Processing
|
24bit real-time processing, color/black and white image, reverse image display, edge enhancement, object outline edge and image detail are more clear, image highlighting, image dimming, image before pulling back 20 pictures, alarm function, image retrieval
|
Image saving, selection, enlargement and recovery
|
Real-time storage of 100,000 frames, 1-9 selections can be selected, and 2-68 times real-time magnification, image display returns to the original state
|
Multi-energy color display
|
Organics are shown in orange, inorganics are shown in blue, and mixtures are shown in green
|
High energy, low energy penetration display and switching
|
Improve the contrast between bright and dark areas of the image, making the easy-to-penetrate area and the difficult-to-penetrate area clearer.
|
Fault self-diagnosis function
|
Automatically judge when a fault occurs, promptly give a prompt message for easy maintenance
|
Auxiliary detection
|
Assist in detecting some typical WeiXian items
|
Unique function
|
Date and time display, working status, image thumbnail display, operator ID, bag count, emergency stop, power-on self-diagnosis function, network interface, system operation and X-ray emission timing
|
Storage temperature / humidity
|
-20℃~60℃ /20%~95%(not condensing)
|
Working temperature / humidity
|
0℃ ~ 45℃ / 20% ~ 95%(not condensing)
|
Noise level
|
≤55dB
|
Film Safety: Safe for ISO1600 film.
Line resolution: 0.0787mm single solid core copper wire.
Penetration resolution: 0.202mm single solid copper wire.
Spatial resolution: horizontal: 1.0mm; vertical: 1.0mm.
Penetration: 40mm steel plate.
Tube voltage: 80kv.
Tube current: 0.6mA.
Beam beam emission angle: 80°.
Single dose: ≦1.22μSv/h.
Power loss: <1kw.
Working voltage: 220VAC (±10%) 50/60Hz.
Cooling duty cycle: sealed oil cooling / 100%.
X-ray sensor: L-shaped photodiode array detector (multi-energy), 16bit accuracy.
Direction of the beam: bottom view.
Console: Single-screen 19.5-inch high-resolution LCD monitor.
Computer operating system: Windows7 64-bit.
One-touch on/off: On/off, just rotate the key and the device automatically turns on/off safely.
Environmentally friendly design: double layer 0.35mm lead equivalent, lead screen is coated with protective film to avoid lead pollution and prolong service life
Color / Black & White: for color and grayscale image switching
High/low energy black and white: for high/low energy grayscale switching
Organic removal: the effect of this operation is opposite to that highlighted by organic matter.
Inorganic rejection: the effect of this operation is opposite to that highlighted by inorganics.
Over-increasing: Enhances the details of the image so that objects hidden behind thick objects are clearly displayed.
Increase: Brighten the darker areas of the image so that objects hidden behind thick objects are clearly displayed.
High wear: enhances the display of dark areas, making the display of difficult objects more visible.
Low wear: enhances the display of bright areas, making the display of easy-to-penetrate objects more visible.
Brighten/dark: Allows brightening/darkening of the entire image.
Gray sweep: The image will automatically grayscale map, gradually darken the dark area, and the bright area will gradually darken.
Texture: Enhances the texture of the image.
Restore: Restore to an unprocessed image
Mirror: Mirror function provides real-time partial magnification, easy to observe the edges and details of the item
Image enlargement and reduction: the image can be enlarged to infinity and scaled down to the original image
TIP insertion: operator assessment project
Auto-sensing function: Energy-saving mode: Conveyor automatic running/stopping

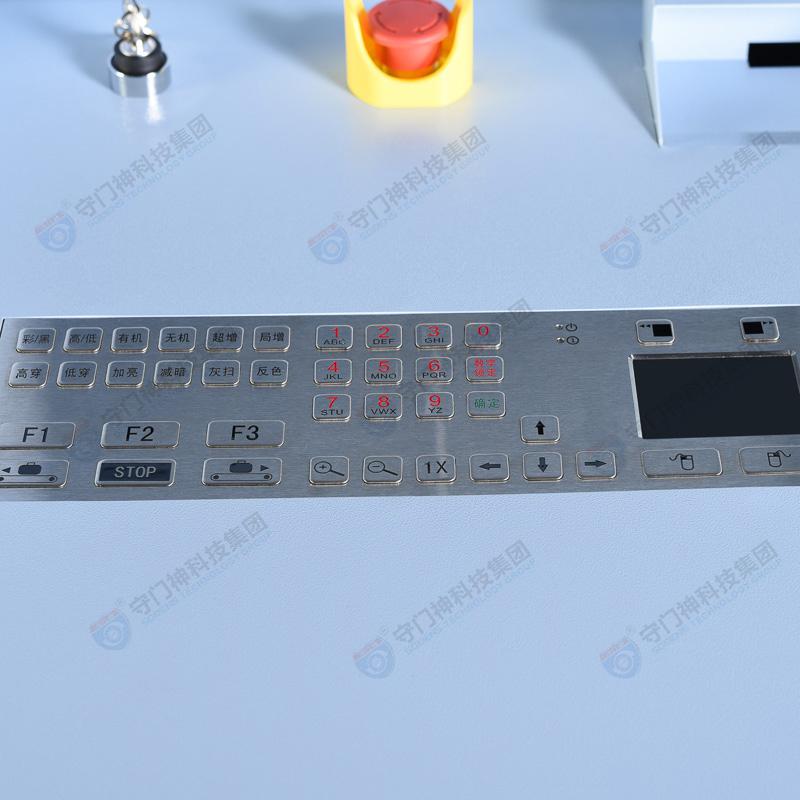

Combination shortcut F1.F2.F3: One shortcut button uses three functions to process image effects at the same time
Remote software emergency stop button: In case of emergency, the belt stops working and the ray generator stops working.
