SOMENS-10080 X-ray safety inspection equipment_Guangdong logistics security inspection machine_Station inspection station large x-ray security inspection machine

The goalkeeper SMS-10080 large-channel X-ray machine has passed the certification of the Ministry of Public Security, and its performance parameters are internationally leading. It has the characteristics of one-button switch machine, energy saving and environmental protection.

Product category：Large express logistics, customs port X-ray security equipment
Product model：SOMENS-10080

National Service Hotline 400-8353-880

Consultation

Product details
Product parameters

| Product Description:

The SMS-10080 large-channel X-ray machine has passed the certification of the Ministry of Public Security, and its performance parameters are internationally leading. It has the characteristics of one-button switch machine, energy saving and environmental protection.

| Product application:

Important departments of public security armed police, courts, prisons, subways, customs stations, port terminals, logistics express, hotel schools, factory enterprises and other public places. It is mainly used to detect prohibited items and flammable and explosive items hidden in large items of goods, parcels, mails, bags, and other items, such as controlled knives, firearms, fireworks, alcohol, gasoline, and sulfuric acid.

SOMENS-10080Technical Parameters
Channel size	1000mm (width) × 800mm (height)
Dimensions	4563mm (length) × 1305mm (width) × 1750mm (height)
Conveyor maximum load	220kg
Conveyor speed	0.22m/s
Film security	ISO1600 film security
Line resolution	0.0787mm Single solid copper wire
Penetration resolution	0.254mm Single solid copper wire
Spatial resolution	Level: 1.0mm; Vertical: 1.0mm
Penetration	38mm Steel plate
Tube voltage	160kv
Tube current	0.6mA
Beam emission angle	80°
Single dose	≦1.08μSv/h
Leakage dose rate	≦0.16μSv/h
Power loss	<1kw
Operating Voltage	220VAC(±10%) 50/60Hz
Cooling cycle	Sealed oil cooling / 100%
X-ray sensor	L-shaped photodiode array detector (multi-energy), 16bit accuracy
Beam direction	Top-illuminated

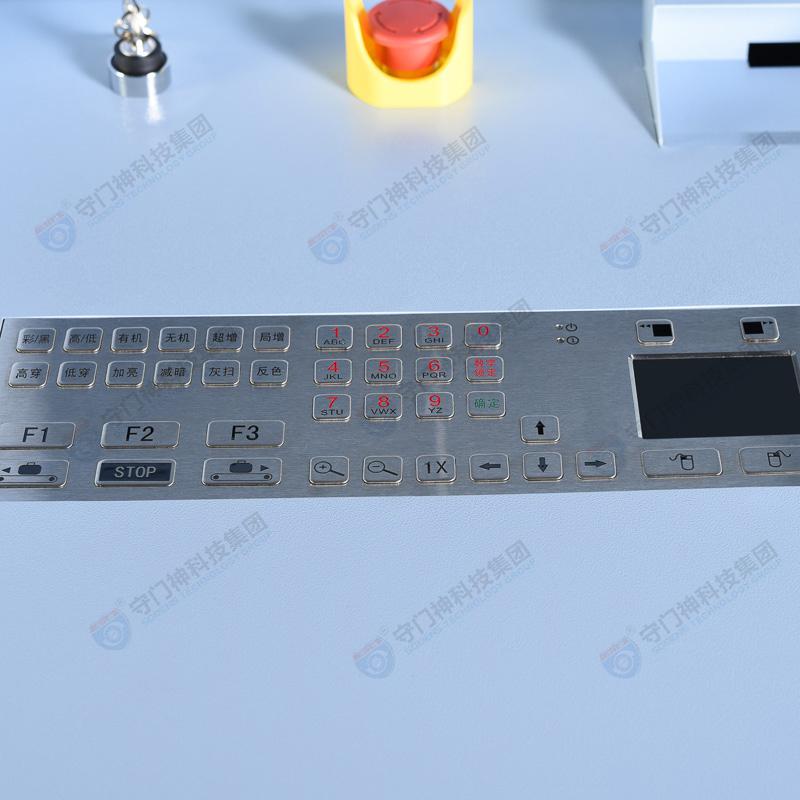

Console	Dual screen (color / black and white) 19.5 inch high resolution LCD display
Computer operating system	Windows7 64 Bit
One-button on/off	Turn on/off only by rotating the key, the device automatically opens/closes safely
Environmentally friendly design	Double layer 0.35mm lead equivalent, lead curtain is coated with protective film to avoid lead pollution and prolong service life
Image resolution and gray image	Resolution: 1920×1080; gray image: 65536
Color/black and white	For color and grayscale image switching
High/low energy black and white	Switching between high/low energy grayscale maps
Organic rejection	The effect of this operation is opposite to that of organic highlighting
Inorganic rejection	The effect of this operation is opposite to that of inorganic highlights.
Over increase	Enhance the details of the image so that objects hidden behind thick objects are clearly displayed
Increase	Brighten the darker areas of the image so that objects hidden behind thick objects are clearly displayed
High wear	Enhance the display of dark areas, making the display of difficult objects more visible
Low wear	Enhance the display of bright areas, making the display of easy-to-penetrate objects more visible
Brighten/dark	Brighten/dark effect on the entire image
Gray sweep	The image will automatically be grayscaled, the dark area will be gradually brightened, and the bright area will be gradually darkened.
Texture	Enhance the texture of the image
reduction	Revert to unprocessed image
Mirror	The Mirror feature provides real-time partial magnification for easy viewing of the edges and details of the item
